Customizable Low Altitude Surveillance Radar X Band With Automatic Moving Target Detection

MOQ : 10

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Model NO. : AZ5812A09

Customization : Available

Type : Sensor

Certification : ISO

Target Tracking : Automatic Target Detection and Tracking

Mounting Options : Fixed, Mobile, Portable

Power Supply : AC 220V/50Hz

Antenna Type : Parabolic

Operating Temperature : -40°C to +60°C

Detection Modes : Continuous Wave, Frequency Modulated Continuous Wave, Pulse Doppler

Dimensions : 800mm x 800mm x 400mm

Scan Rate : Up to 60 RPM

Detection Range : Up to 10 km

Frequency Range : 2-18 GHz

Environmental Protection : IP66

Data Output : Digital and Analog

Alarm Function : Audible and Visual

Communication Interface : Ethernet, RS-485, RS-232

Place of Origin : China

Brand Name : OEM

Contact Now

≤100kg Customizable State-of-the-Art Airfield and Wildlife Detection Radar with Automatic Moving Target Detection

Model NO.	AZ5812A09
Operating frequency	X Band
Detection range and scanning method	Yes
Detection range	≤40MHz
system	Digital multibeam
Beam scanning mode	Pitch electronic scanning Azimuth mechanical scanning
Antenna transmit peak power	<1600W
Average power of whole machine	<1200W
Detection power	≥15km (RCS=0.01)
Minimum detection altitude	10m
Deployment time	≤10minutes
Put away time	≤10minutes
Distance blind zone	≤150m
Azimuth range	360°
Pitch range	30°
Measuring range	0.5~150m/s
Range accuracy	5m
Azimuth accuracy	0.3°
Pitch accuracy	0.3°

weight	Total: 100kg
Radar host size	950mm750mm150mm

AZ5812A09 security radar is a three-coordinate low-altitude UAV detection radar, working in the X-band, is a radar system that can detect and early warning at low altitude, slow speed and small targets (referred to as low slow small targets) all day long. The radar adopts the DBF system, azimuth mechanical scanning covers the whole airspace of 360°, and the rapid phase scanning of the pitch achieves a wide range of airspace coverage. Full range, high precision and stable detection of low and slow small targets such as unmanned aerial vehicles, real-time acquisition of target distance, azimuth, altitude and speed information.
It has the advantages of low false alarm rate, high precision, intelligence, high refresh rate, detecting fast, slow and high maneuverability targets at the same time.

1) The radar output is your guide to mastery, directing the identification, verification, and management of optoelectronic systems, among others. It elevates your operational capacity across various platforms.

2) Harness the power of self-reliance with autonomous search and automatic tracking conversion. Enjoy the luxury of fully automated, unmanned operations, perfect for conventional background environments.

Customizable Low Altitude Surveillance Radar X Band With Automatic Moving Target Detection

1) 360 ° Global Low Altitude Monitoring and Detection:
Harness the power of comprehensive 360 ° global surveillance with our radar's remarkable monitoring mode. Effortlessly sweeping the skies, the radar meticulously scans the entire airspace, identifying airborne threats like drones and balloons. It tracks these targets, meticulously building navigational data, while precisely measuring critical parameters such as distance, angle, altitude, and speed. All this information is promptly relayed to the command terminal, ensuring timely and informed decisions with unmatched efficiency.

2) Precision Target Tracking: Once the radar locks onto a target, it seamlessly transitions into a dedicated tracking mode, maintaining a sharp and precise focus on the target of interest. With an impressive data rate of 1 second, it ensures ceaseless and accurate observation.

3) Guided System Integration: The radar's output serves as a strategic guide, directing the identification, confirmation, and operational handling of optoelectronic systems and other correlated technologies.

Technological Advantages

1) Unparalleled 360 ° Monitoring and Detection: Dive into the radar's exceptional 360 ° global monitoring prowess, where it diligently scans the entire airspace with precision. Identifying airborne entities like drones and balloons, the radar expertly tracks and constructs navigational insights, while evaluating vital information such as distance, angle, altitude, and speed. This data is instantaneously communicated to the command center, facilitating prompt and actionable intelligence.

2) Impeccable Single Target Tracking: Following the radar's acquisition of a target, it adeptly switches to tracking mode, pursuing the target with unwavering precision. Achieving a rapid data rate of 1 second, it ensures continuous and focused surveillance.

3) Strategic Radar Output: The radar's output is instrumental in guiding the identification, confirmation, and strategic resolution of optoelectronic systems and other systems, ensuring cohesive and effective operations.

4) Autonomous Operation Capabilities: Equipped for autonomous search and automatic tracking conversion, our radar excels in delivering fully automatic, unmanned operations in standard operational environments.

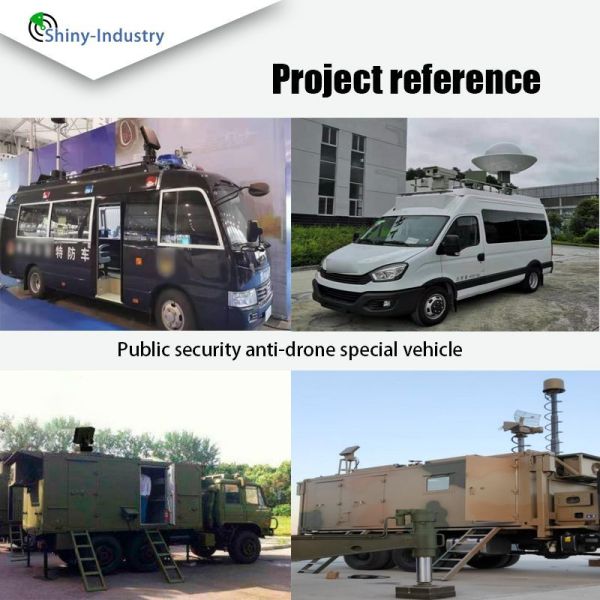

5) Lightweight, Portable, and Vehicle-Compatible: Embrace the ease of rapid deployment and installation with our compact radar system. Weighing approximately 25kg, it is designed for swift setup and removal by a single operator, facilitating fast mobile deployment. The radar and gimbal can be mounted on a vehicle roof, expanding its application versatility to vehicular use.

6) Expansive Coverage and Versatile Deployment:
Experience remarkable spatial coverage with a maximum azimuth range of 360 ° and elevation coverage of 30 °. This flexibility supports 360 ° circumferential scanning and is adaptable for focused sector monitoring, ensuring comprehensive surveillance capabilities.

Customizable Low Altitude Surveillance Radar X Band With Automatic Moving Target Detection
